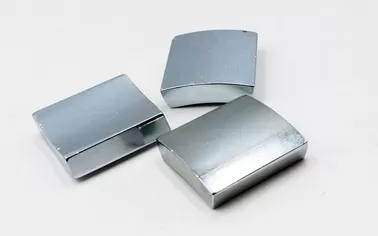

N52 Μαγνήτες νεοδύμιου τόξου με μία πλευρά επίπεδα με μία πλευρά καμπυλωμένα ως περιστροφέας κινητήρα για ηλεκτρική ενέργεια Σύνοψη: Οι μαγνήτες νεοδίμου τόξου N52 είναι ισχυροί μόνιμοι μαγνήτες που κατασκευάζονται από ένα κράμα νεοδίμου, σιδήρου και βορίου.λόγω των ισχυρών μαγνητικών τους ιδιοτήτων.   Σχεδιασμός: Σχήμα: Αυτοί οι μαγνήτες έχουν συνήθως μία επίπεδη πλευρά και μια καμπυλωτή πλευρά, επιτρέποντάς τους να χωρέσουν στενά σε συναρμολόγια rotor.Αξία: Το N52 υποδηλώνει την αντοχή του μαγνήτη, καθιστώντας τον έναν από τους ισχυρότερους εμπορικά διαθέσιμους βαθμούς. Εφαρμογές: Ηλεκτρικοί κινητήρες: Ιδανικός για χρήση σε κινητήρες συνεχούς ρεύματος χωρίς βούρτσα ή σταπτήρες, όπου η αποτελεσματική μαγνητική απόδοση είναι κρίσιμη για τη μετατροπή ενέργειας.Γεννήτριες: Χρήσιμες σε εφαρμογές παραγωγής ενέργειας, όπου απαιτείται περιστροφή σε μαγνητικό πεδίο για την παραγωγή ηλεκτρικής ενέργειας. Πλεονεκτήματα Υψηλή μαγνητική αντοχή: Οι μαγνήτες N52 παρέχουν ισχυρό μαγνητικό πεδίο, βελτιώνοντας την απόδοση και την απόδοση των κινητήρων.Συμπίεση μεγέθους: Η αναλογία αντοχής προς βάρος τους επιτρέπει μικρότερα και ελαφρύτερα σχέδια χωρίς να θυσιάζεται η ισχύς.Δυνατότητα: Οι μαγνήτες νεοδύμιου είναι ανθεκτικοί στον απομαγνητισμό, εξασφαλίζοντας μακροχρόνια απόδοση σε διάφορα περιβάλλοντα. Σημειώσεις: Ευαισθησία θερμοκρασίας: Οι μαγνήτες N52 μπορούν να χάσουν τον μαγνητισμό τους σε υψηλές θερμοκρασίες, οπότε είναι απαραίτητο να εξετάζεται η θερμική διαχείριση σε σχεδιασμούς.Τραγικότητα: Αυτοί οι μαγνήτες μπορεί να είναι εύθραυστοι, γι' αυτό πρέπει να λαμβάνεται προσοχή κατά το χειρισμό και την εγκατάσταση για να αποφευχθεί το θραύσμα ή το σπάσιμο. Συμπέρασμα: Οι μαγνήτες νεοδύμιου τόξου N52 είναι μια εξαιρετική επιλογή για τους περιστροφούς κινητήρα σε εφαρμογές παροχής ηλεκτρικής ενέργειας, παρέχοντας υψηλή αντοχή και απόδοση σε ένα συμπαγές παράγοντα μορφής.Κατά το σχεδιασμό συστημάτων που χρησιμοποιούν αυτούς τους μαγνήτες, πρέπει να λαμβάνουν υπόψη τη θερμοκρασία και τα χαρακτηριστικά χειρισμού τους για να εξασφαλίζεται η βέλτιστη απόδοση.
